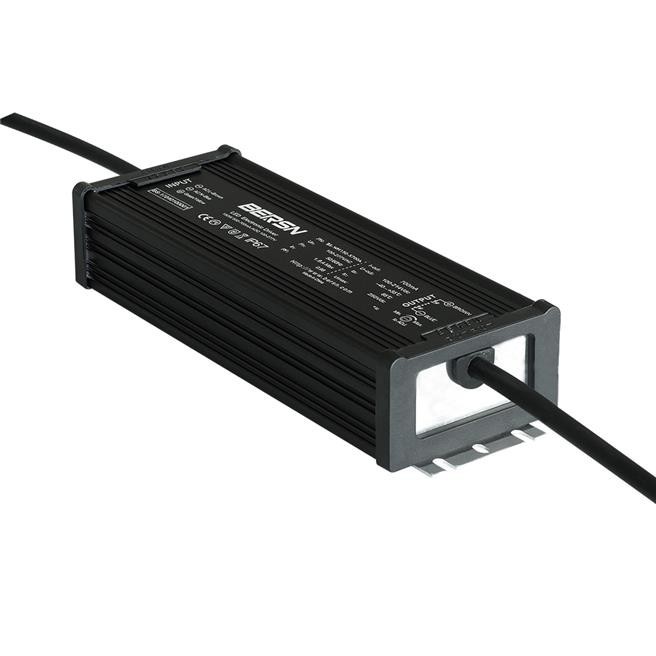

AURORA 60W 0.6-1.3A AOC 100-277V 0-10V DIM
Hot Sale Constant Current Outdoor IP67 Dimmable LED Driver Aluminum Case for Led Street light
Characteristic
· Wide AC input/ Ful range (90-305 Vac)
· Built-in active PFC function
· High efficiency up to 89%
· Protections: short circuit/ Over current/ Over temperature
· 380V Input Voltage Protection
· IP67 design for outdoor installation
· Surge protection Integrated L/N-G 6kV, L-L 4kV
Electrical Input Data
Specification item | Value | Unit | Condition |
Nominal Input Voltage | 100…277 | Vac | |
Operation Voltage AC | 90…305 | Vac | Safety operation |
Nominal Input Frequency | 50…60 | Hz | |
Input Frequency AC | 47…63 | Hz | Maximum permissible range |
Nominal Input Current | 0.20…0.66 | A | 100V…277V atfull load |
Maximum Input Current | 0.75 | A | At 90V |
Nominal Input Power | 67 | W | At 230V at full load |
Power Factor | ≥0.95 | At 230V at full load | |
Total Harmonic Distortion | ≤15 | % | At 230V at full load |
Efficiency | 89 | % | At 230V at full load |
Electrical Output Data
Specification item | Value | Unit | Condition |
Regulation Method | Constant Current | ||
Output Voltage | 40…48 | Vdc | |
Output Voltage Max | 60 | Vdc | Peak voltage at open circuit |
Output Current | A | AOC | |
Output Current Tolerance | ±5 | % | At max. output current, Ta=25 oC (cold start) |
Output Current Ripple LF | 5 | % | Ripple = peak / average, at<1kHz |
Output Power | 60 | W | At full load |
Galvanic Isolation | Yes | Double; 3750V |
Operational Temperature and Humidity
Specification item | Value | Unit | Condition |
Ambient Temperature | -40…+55 | °C | |
Tcase Maximum Tcase | 85 | °C | Measured at Tc-point |
Tcase Life | 70 | °C | Measured at Tc-point |
Tcase Cut-Off | 90 | °C | Cut-off |
Lifetime
Specification item | Value | Unit | Condition |
Lifetime | 50,000 | Hours | At Tcase Life; Survival rate = 90% |
Programmable Features
Specification item | Value | Remark | Condition |
Adjustable Output Current (AOC) | 0.6-1.3A | ||
Dimming | DAC 0-10V |
Features
Specification item | Value | Remark | Condition |
Over Temperature Protection | Yes | Cut-off | |
Open Circuit Protection | Yes | ||
Short Circuit Protection | Yes | ||
Over Power Protection | Yes |
Certificates and Standards
Specification item | Value |
Approval Marks | ENEC / CE / RoHS |
Ingress Protection Rating | IP67 |
Surge Capability
Specification item | Value | Unit | Condition |
Mains Surge Capability Differential Mode | 4 | KV | L-N |
Mains Surge Capability Common Mode | 6 | KV | L/N-GND |
Specification item | Value |
Product Name | AURORA 60W 0.6-1.3A AOC 100-277V 0－10V DIM IP67 |
Model No. | BS-H60-48D |
Pieces per Box | 10 |
LED driver benefits:
LED drivers offer great light efficiency and low energy consumption, allowing them to save significantly more energy than traditional lighting devices.
Environmental protection: LED drivers do not contain dangerous chemicals like mercury, and they may efficiently cut carbon dioxide emissions while meeting environmental protection standards.
Rich colors: LED drivers can change color and brightness by altering current, giving you more illumination options.
Strong durability: The LED driver is built of solid materials, has strong shock and vibration resistance, and can withstand hard outdoor conditions.
Instant Start: The LED driver powers up instantly and achieves maximum brightness without preheating.
Good optical performance: LED drivers can create custom optical systems to produce directed illumination and prevent light pollution.
We also have other models to choose from, welcome to consult.
