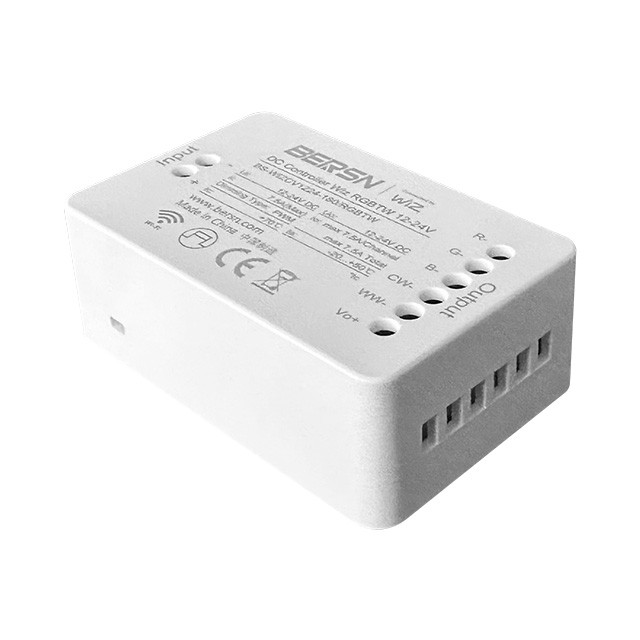

12-24V Tunable White Controller for LED Strip
WiZ TW Controller I 12-24V
BS-WIZCV1224-180
BERSN TW controller connected by WiZ can work with constant voltage LED transformer to enable color and tunable white control features. It enables simple, cost effective wireless lighting system for energy saving and comfort. Advanced design of the bridge box helps to build a reliable and standardized connected lighting system with diferent functionalities from simple wireless dimming to cloud based operations.
Electrical Data
|
Item |
WiZ TW Controller I 12-24V |
|
Model No. |
BS-WIZCV1224-180 |
|
Rated input voltage |
12…24Vdc |
|
Rated input current |
7.5A @ Max output power |
|
Max input power |
180W @ Max output power /@ Max Rated input voltage |
|
Rated output current |
7.5A max total; 3.75A max per channel |
|
Standby power |
<0.5W @ Rated input voltage |
|
ESD |
4KV @ HBM, 8KV @ air |
|
Dimming method |
PWM, 2KHz |
|
Dimming range |
0-100% |
|
Ambient temperature |
-20…+50ºC |
|
Tcase-life |
75ºC |
|
Lifetime |
50,000 hrs |
|
Mains switching cycles |
100,000 Cycles |
|
Connection |
Wi-Fi IEEE802.11 b/g, BLE 4.2 |
|
Audible noise |
<24 dB @ 5cm |
|
Ingress Protection |
IP20 |
|
Approval Marks |
CE-RED |
All specififications are typical and at 25°C Tcase unless otherwise specifified.
Features:
Wide range of applications: WiZ 12-24V TW controller is suitable for LED strips or LED lamps with 12-24V DC power supply. It is compatible with various types and specifications of LED lights, providing a wide range of application options.
Adjustable color temperature: The controller supports color temperature adjustment function, and the color temperature of the lamp can be adjusted as needed. Users can choose different color temperatures from warm white to cool white to adapt to different environments and atmosphere needs.
Adjustable brightness: In addition to color temperature adjustment, the WiZ 12-24V TW controller can also adjust the brightness of the lamp. Users can increase or decrease the brightness level of the light as needed for personalization and comfort of the light.
Smart Control: The controller supports Wi-Fi connection and can be controlled remotely through a smartphone app or smart home platform. Users can use their mobile phones to adjust the brightness and color temperature of lights anytime and anywhere to achieve convenient intelligent lighting control.
Time plan setting: WiZ 12-24V TW controller also has a time plan function, users can set the light on and off time according to their daily schedule. For example, you can preset lights to turn on at a specific time every night, or automatically turn them off when you leave home to improve energy efficiency.
Strong compatibility: The controller can be used with other WiZ smart lighting products, such as WiZ smart bulbs, light strips, etc. Users can manage and control multiple WiZ devices through a unified application to achieve an overall smart lighting system.
RF Interface
|
Communication method |
Wifi + BLE |
|
Wifi Frequency |
2400-2483.5 Mhz (IEEE Std 802.11 b/g) |
|
Wifi Transmission power |
20dbm Max |
|
BLE Frequency |
2400-2483.5 Mhz |
|
BLE Transmission power |
3dbm Max |
|
Wifi channel |
1...13 |
Push Button
|
Push button |
Tact switch, for pairing and factory reset |
|
Notes: 1) Press for under<2 s and release: product does a soft reboot 2) Press for 2s < < 10s and release: product goes into forced pairing mode, outputs dimming variations 3) Press for 10s< and release: reset to factory settings (forgets favorites and Home ID) and reboots |
|
Wiring and Connections
|
Input Wire Type |
1.5 mm2 |
|
Output Wire Type for RGBTW negative |
1.0 mm2 |
|
Output Wire Type for RGBTW Positive |
1.0 mm2 |
|
Wire Length |
130 mm (+/- 5mm) |
|
Wire Strip Length |
10 mm (+/- 5mm) |
Demension and Weight
|
Dimensions LxWxH |
89x40x29mm |
|
Color |
White |
|
Weight |
57 g |
do you have any question?
We're happy to answer your questions. If you don't find yours below, feel free to get in touch!
Is SpaceSense compatible with all WiZ and Connected by WiZ lights? And are all features available (e.g. change warmth, colors, intensity)?
To enable motion detection, you must have at least two SpaceSense-compatible lights or devices installed in a room. All newer WiZ and Connected by WiZ lights that come with a Wi-Fi + Bluetooth dual chip are compatible with SpaceSense.
Once SpaceSense is activated in a room, it can trigger all WiZ and Connected by WiZ lights installed in the room regardless of whether they are SpaceSense-compatible or not.
Can I control WiZ lights from anywhere?
WiZ operates on 2.4GHz Wi-Fi, on either B or G channels. 5GHz Wi-Fi is not supported. However, once your lights are paired, you can control them from anywhere through the Cloud.
